Product description

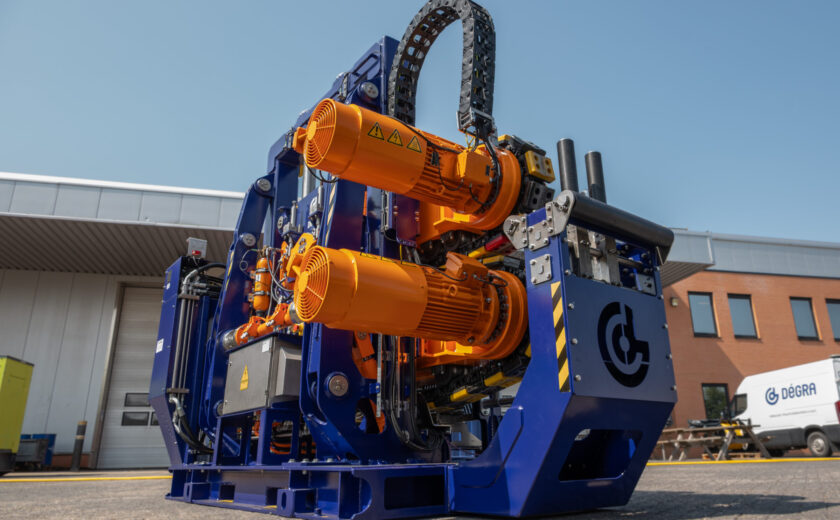

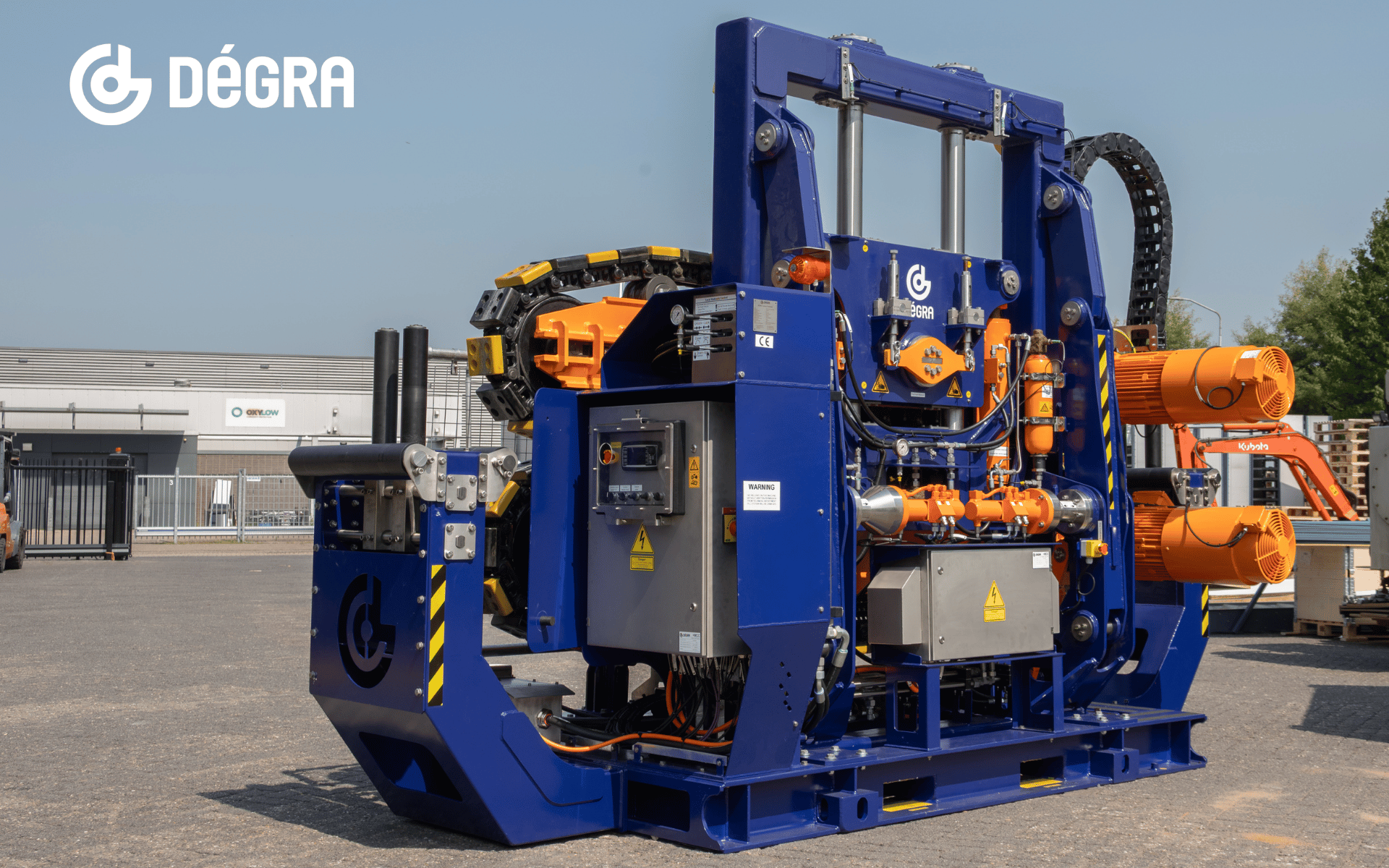

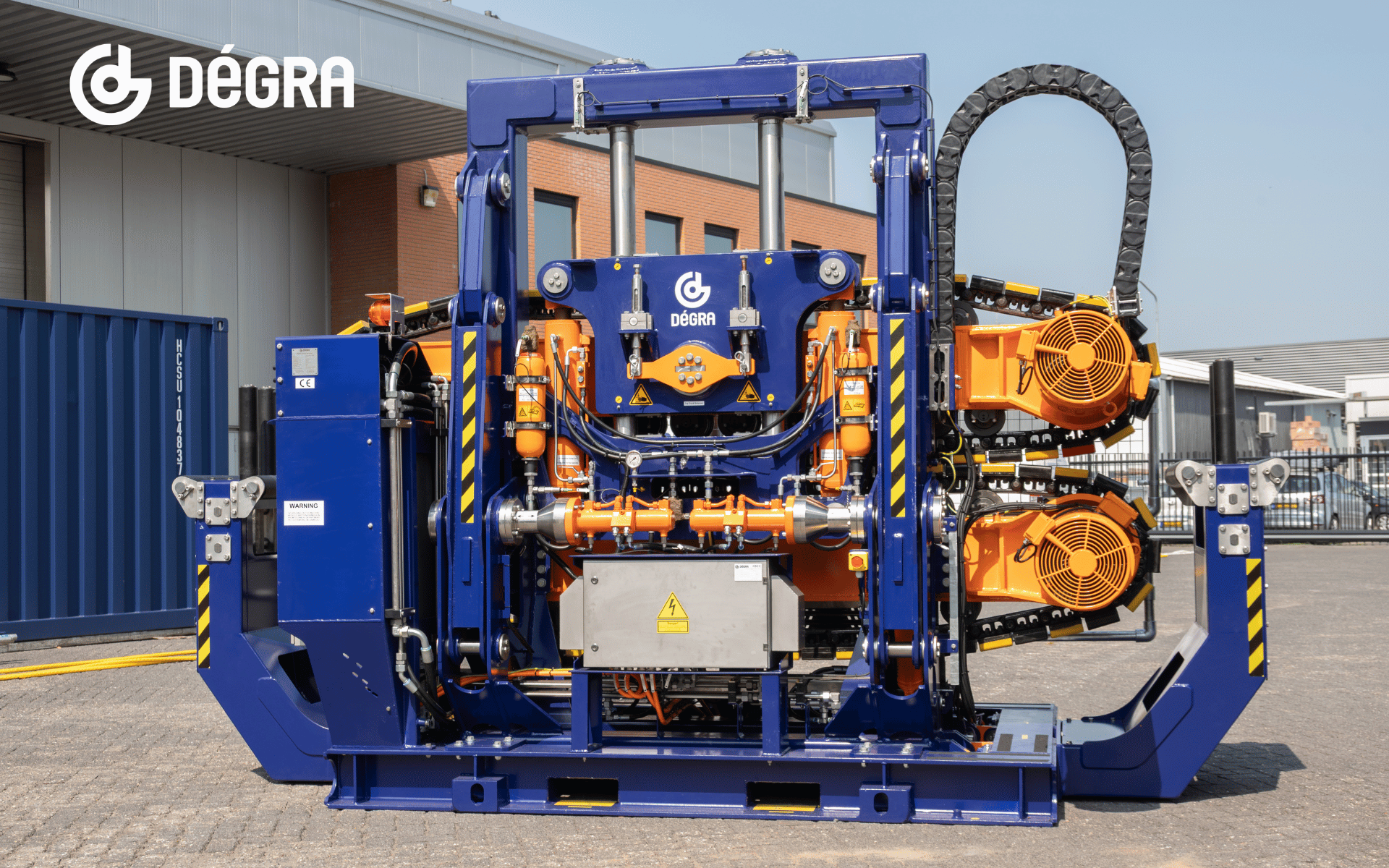

This 6T Track Tensioner is specifically designed for efficient cable handling, offering a pull capacity of 6 tonnes. It features a robust base frame with integrated forklift pockets, ensuring ease of transport and stability during use. Additionally, it is equipped with a breakaway top track, which allows for convenient cable loading and unloading. Two hydraulic cylinders, powered by a fail-safe accumulator, provide the necessary squeezing force. As a result, the design guarantees both stability and precise tensioning throughout the operation.
Specification
Cable handling parameters
- Pull
- 60 kN
- Speed
- 15 m/min
- Squeeze force
- 100 - 150 kN/m
- Effective track length
- Approx. 2,2 m
- Cable diameter
- 50 - 400 mm
- Clearance when open
- 500 mm
Dimensions
- Dimensions
- 4500 x 2000 x 3000 mm
- Weight
- Approx. 7500 kg
Control options
- Control modes
- CT / Speed
- Remote control
- Load cells
- Feedback screen
- Data logging
- Local / Data string out
Service and extra's
Powering Option
For added flexibility, the tensioner can be powered by a power pack housed in a 10ft container. This container not only protects the power pack but also incorporates the control system, ensuring seamless operation.
Customisable Controls
Moreover, the control system can be tailored to meet specific operational needs. This customisation offers exceptional flexibility and ensures compatibility with various processes. Consequently, the 6T Track Tensioner is well-suited to a wide range of cable handling applications.
Specifications
It is important to note that specification values may vary depending on operational requirements. Furthermore, the product is fully customisable to meet customer specifications, ensuring it aligns perfectly with project-specific demands. For further details or to discuss your unique requirements, please do not hesitate to contact us.
