Product description

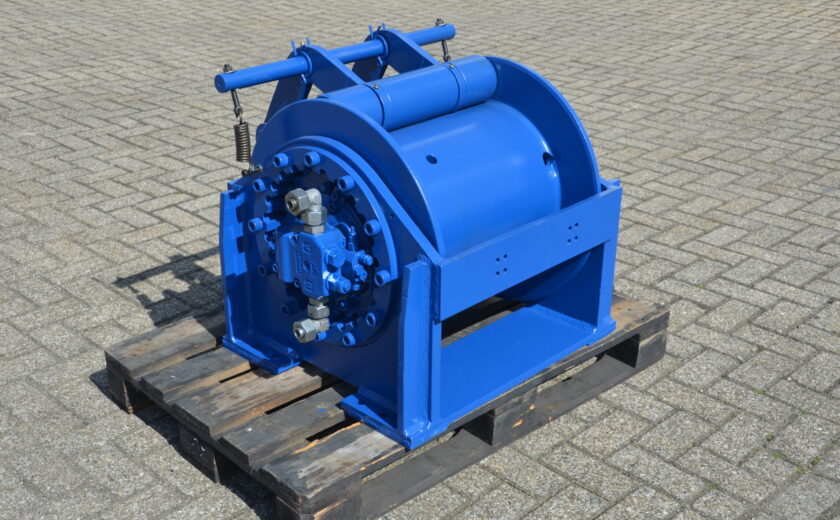

A hydraulic driven pulling winch fitted with an LSHT radial piston motor combined with a counter balance valve manifold connected to a planetary gearbox with an integrated fail safe multi disc brake. Also equipped with a pressure roller and an output shaft for an encoder or limit switch.
Specification
Technical Data
- Line pull
- 100 kN
- Line speed
- 21 m/min
Dimensions
- Drum diameter
- 405 mm
- Drum length
- 510 mm
- Winch dimensions
- 827 x 668 x 690 mm
- Weight
- 570 kg
