Product description

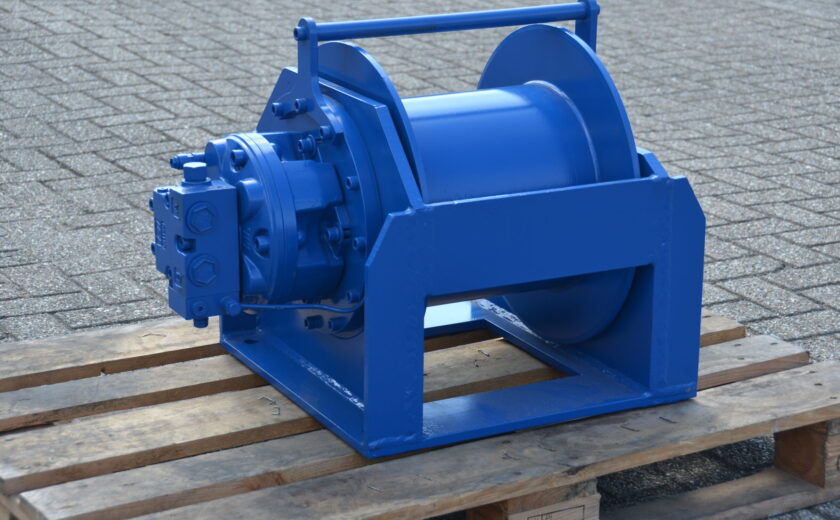

A compact multi-purpose hydraulic winch ready to be installed for your application. With a radial piston motor this winch is suitable for applications where high torques are needed while working at (relatively) low speed. The planetary gearbox is integrated in the drum of the winch, which makes its design very compact. With both a fail safe multi-disc brake and a counter balance valve manifold connected to the planetary gearbox this winch is suitable for both tugging and lifting applications. In previous projects this winch type is used as hoisting winch on multi-purpose offshore vessels, as ladder winch on dredgers and also as reeving winch on crawler cranes.

The DHW3-18-60-15.5-ZP is a hydraulic winch ready for various 2 ton winch applications.

Specification

Technical Data

Line pull
20 kN
Line speed
36 m/min

Dimensions

Drum diameter
300 mm
Drum length
310 mm
Winch dimensions (LWH)
697 x 500 x 536 mm
Weight
222 kg

Options

Safety

Operational

e.g. DNV, Lloyds,

Add-ons

Additional equipment

Services

Request quote for:
