Product description

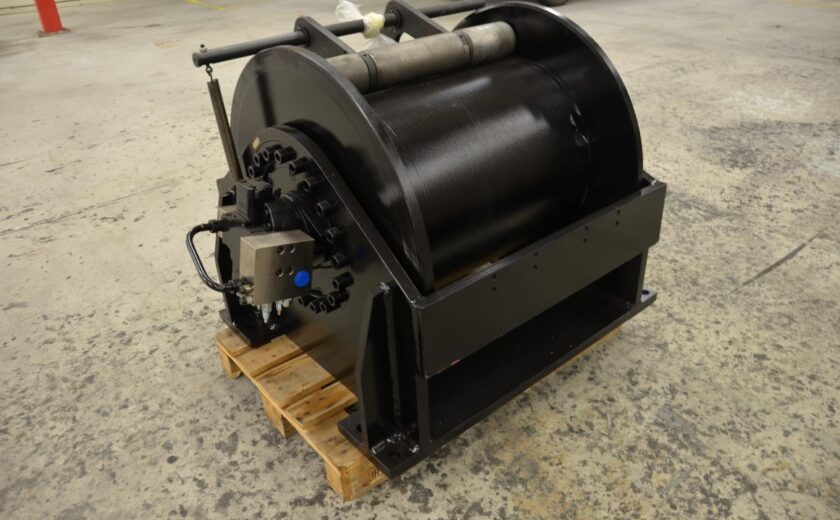

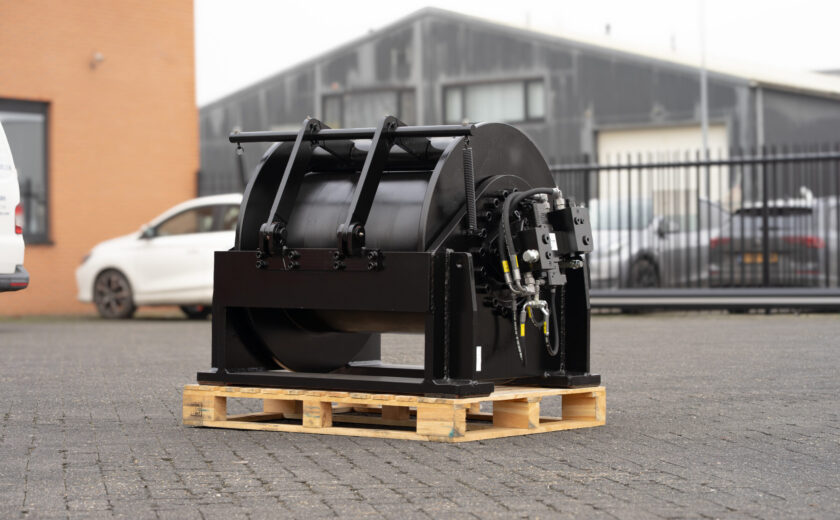

A hydraulic driven winch fitted with a variable axial piston motor with a direct mounted counter balance valve and planetary gearbox with failsafe brake.
Specification
Technical Data
- Line pull
- 200 kN
- Line speed
- 13 m/min
Dimensions
- Drum diameter
- 600 mm
- Drum length
- 780 mm
- Winch dimensions
- 1272 x 1110 x 962 mm
- Weight
- 1800 kg
