Product description

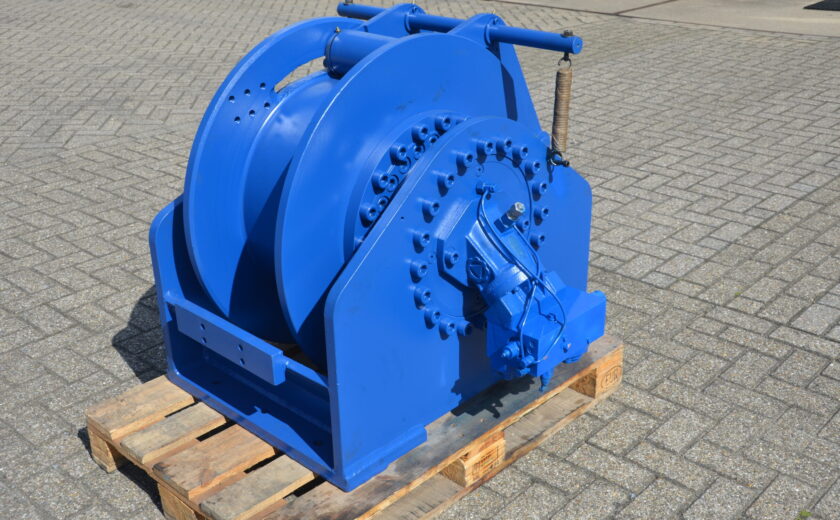

A planetary driven, hydraulic 200 kN winch fitted with an axial piston motor directly connected to a manifold with an integrated SUN CBIG-LCN counter balance valve. The winch will control the load during lowering and will automatically release the spring applied parking brake when in neutral.
Specification
Technical Data
- Line pull
- 200 kN
- Line speed
- 15 m/min
Dimensions
- Drum diameter
- 370 mm
- Drum length
- 300 mm
- Winch dimensions
- 960 x 998 x 880 mm
- Weight
- 1500 kg
