Product description

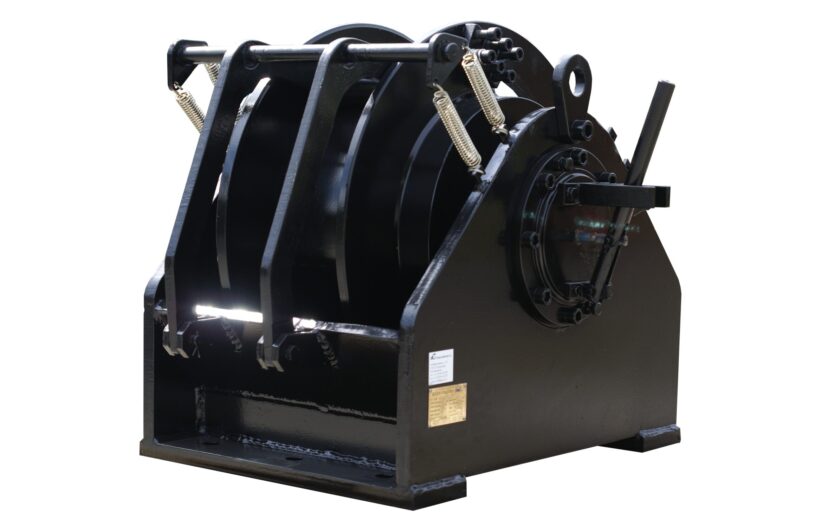

A 6 ton hydraulic driven winch fitted with a variable axial piston motor combined with a counter balance valve manifold connected to a planetary gearbox with an integrated fail safe multi disc brake. Also equipped with a pressure roller and a mechanical freewheel.
Specification
Technical Data
- Line pull
- 60 kN
- Line speed
- 30 m/min
Dimensions
- Drum diameter
- 404 mm
- Drum length
- 210 mm
- Winch dimensions
- 789 x 700 x 665 mm
- Weight
- 582 kg
